Installation

PyBotchi requires Python 3.12 or higher. Install using pip:

pip install pybotchi

Optional Dependencies

For additional features, install optional dependencies:

# With grpc support
pip install pybotchi[grpc]

# With mcp support
pip install pybotchi[mcp]

# With both
pip install pybotchi[grpc,mcp]

From Source

To install the latest development version:

git clone https://github.com/amadolid/pybotchi.git
cd pybotchi
pip install -e .
# pip install -e .[grpc]
# pip install -e .[mcp]
# pip install -e .[grpc,mcp]

Quick Start

Get up and running with PyBotchi in minutes. Here's a simple example to create your first agent:

Declare your base LLM

This base LLM instance will be used for tool-selection (or child-selection).

from langchain_openai import AzureChatOpenAI

from pybotchi import LLM

LLM.add(
    base=AzureChatOpenAI(
        api_key="{{CHAT_KEY}}",
        azure_endpoint="{{CHAT_ENDPOINT}}",
        azure_deployment="{{CHAT_DEPLOYMENT}}",
        model="{{CHAT_MODEL}}",
        api_version="{{CHAT_VERSION}}",
        temperature={{CHAT_TEMPERATURE}},
        stream_usage=True,
    )
)

Declare your master agent

Get up and running with PyBotchi in minutes. Here's a simple example to create your first agent:

from pybotchi import Action, ActionReturn, Context

from pydantic import Field

# previous imports and code ...

class GeneralChat(Action):
    """Casual Generic Chat."""

    class AnswerMathProlem(Action):
        """Answer math problem."""

        answer: str = Field(description="The answer to the math problem")

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            await context.add_response(self, self.answer)
            return ActionReturn.GO


    class Translate(Action):
        """Translate query to requested language."""

        translation: str = Field(description="The translation of the query")

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            await context.add_response(self, self.translation)
            return ActionReturn.GO

Initialize your context

from pybotchi import Context

context = Context(
    prompts=[
        {
            "role": "system",
            "content": """
You're an AI the can solve math problem and translate any request.

Your primary focus is to prioritize tool usage and efficiently handle multiple tool calls, including invoking the same tool multiple times if necessary.
Ensure that all relevant tools are effectively utilized and properly sequenced to accurately and comprehensively address the user's inquiry.
""",
        },
        {
            "role": "user",
            "content": "4 x 4 and explain your answer in filipino",
        },
    ],
)

Run your master agent

Start your agent using asyncio.

from asyncio import run
from json import dumps

from pybotchi import graph

# previous imports and code ...

async def main():
    action, _ = await context.start(GeneralChat)
    print(dumps(context.prompts, indent=4))
    print(dumps(action.serialize(), indent=4))

    general_chat_graph = await graph(GeneralChat)
    print(general_chat_graph.flowchart())

run(main())


Result:

[
    {
        "role": "system",
        "content": "You're an AI the can solve math problem and translate any request.\n\nYour primary focus is to prioritize tool usage and efficiently handle multiple tool calls, including invoking the same tool multiple times if necessary.\nEnsure that all relevant tools are effectively utilized and properly sequenced to accurately and comprehensively address the user's inquiry."
    },
    {
        "role": "user",
        "content": "4 x 4 and explain your answer in filipino"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_ea7e65251a02464ba1c60d403748dae4",
                "function": {
                    "name": "AnswerMathProlem",
                    "arguments": "{\"answer\":\"4 x 4\"}"
                },
                "type": "function"
            }
        ]
    },
    {
        "content": "4 x 4",
        "role": "tool",
        "tool_call_id": "call_ea7e65251a02464ba1c60d403748dae4"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_fd071414f57d4320a2359be6e4a6497c",
                "function": {
                    "name": "Translate",
                    "arguments": "{\"translation\":\"Ang 4 x 4 ay 16 dahil kapag minultiply mo ang apat sa apat, ang sagot ay labing anim.\"}"
                },
                "type": "function"
            }
        ]
    },
    {
        "content": "Ang 4 x 4 ay 16 dahil kapag minultiply mo ang apat sa apat, ang sagot ay labing anim.",
        "role": "tool",
        "tool_call_id": "call_fd071414f57d4320a2359be6e4a6497c"
    }
]
{
    "name": "GeneralChat",
    "args": {},
    "usages": [
        {
            "name": "$tool",
            "model": "gpt-4.1",
            "usage": {
                "input_tokens": 316,
                "output_tokens": 76,
                "total_tokens": 392,
                "input_token_details": {
                    "audio": 0,
                    "cache_read": 0
                },
                "output_token_details": {
                    "audio": 0,
                    "reasoning": 0
                }
            }
        }
    ],
    "actions": [
        {
            "name": "AnswerMathProlem",
            "args": {
                "answer": "4 x 4"
            },
            "usages": [],
            "actions": []
        },
        {
            "name": "Translate",
            "args": {
                "translation": "Ang 4 x 4 ay 16 dahil kapag minultiply mo ang apat sa apat, ang sagot ay labing anim."
            },
            "usages": [],
            "actions": []
        }
    ]
}

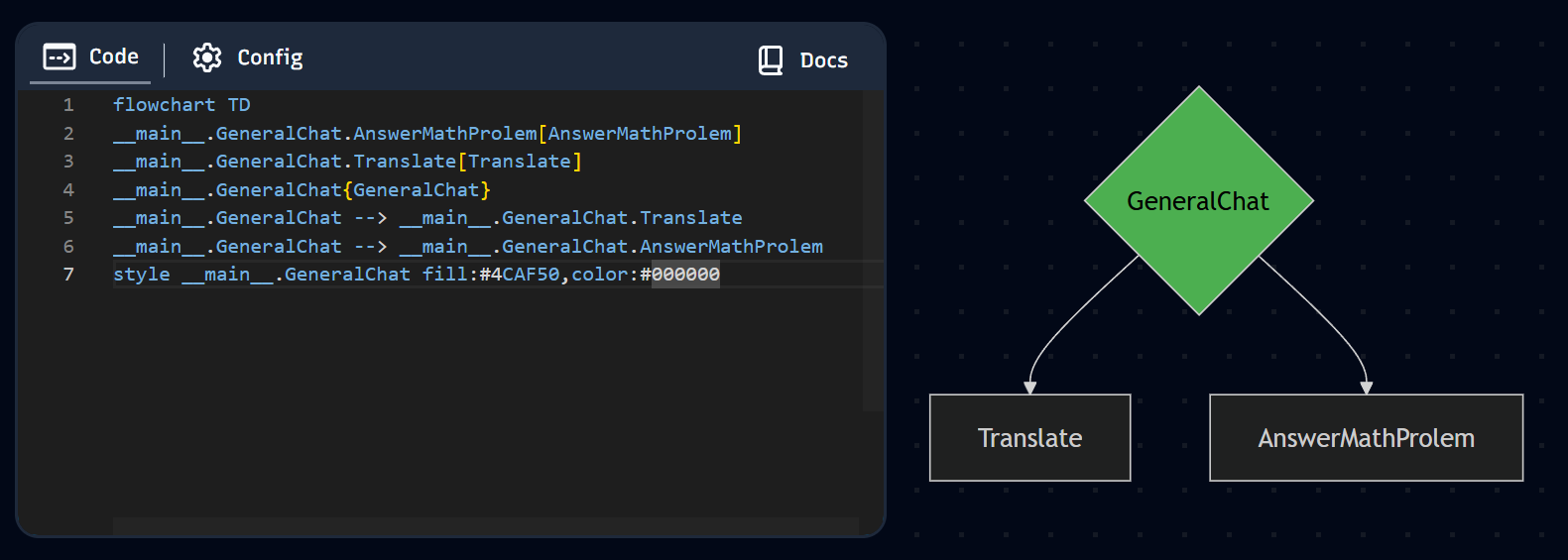

flowchart TD
__main__.GeneralChat.AnswerMathProlem[AnswerMathProlem]
__main__.GeneralChat.Translate[Translate]
__main__.GeneralChat{GeneralChat}
__main__.GeneralChat --> __main__.GeneralChat.Translate
__main__.GeneralChat --> __main__.GeneralChat.AnswerMathProlem
style __main__.GeneralChat fill:#4CAF50,color:#000000

Mermaid-JS Flowchart

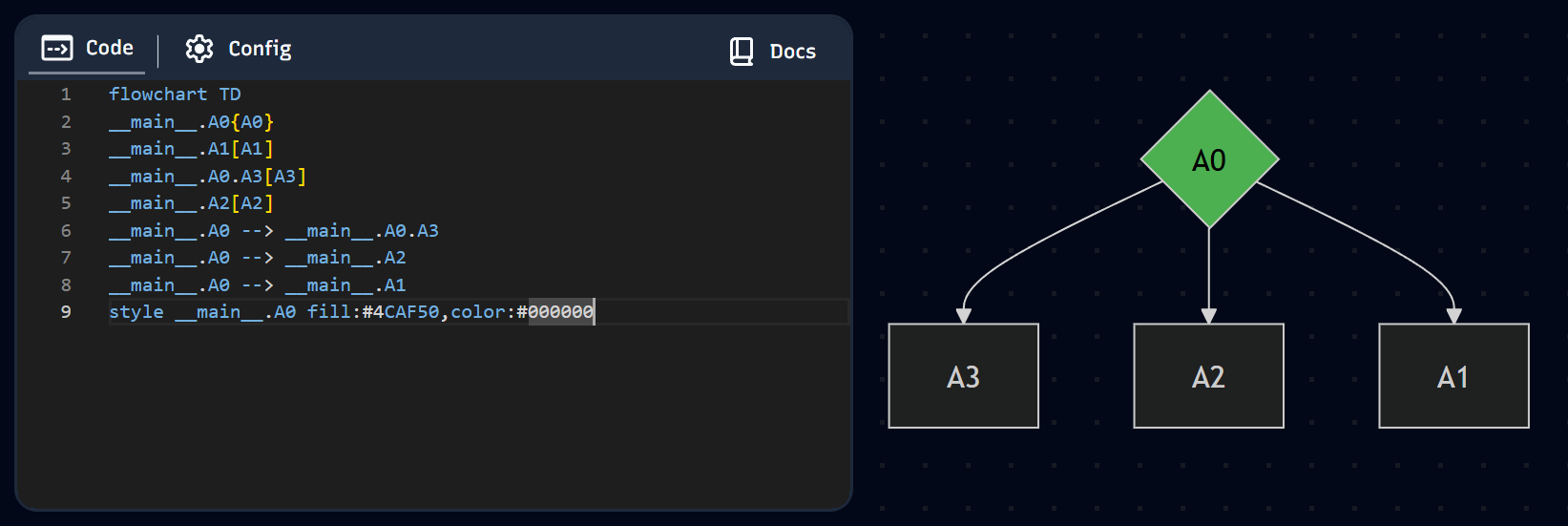

OOP-Driven Agent Customization

Customize your agent by utilizing Object-Oriented Programming practices

Inheritance

Overrides & Extensions

from typing import ClassVar

from pybotchi import Action, graph

class A1(Action):
    """Doc 1."""

class A2(Action):
    """Doc 2."""

# Declare Agent with A1 & A2 as child Actions
class A0(Action):
    """Maid doc."""

    A1: ClassVar = A1
    A2: ClassVar = A2

    # OR
    # class A1(A1):
    #    pass
    # class A2(A2):
    #    pass

    # Additional Agents
    class A3(Action):
        """Doc 3."""

    class A4(Action):
        """Doc 4."""

        # override print method
        def print(self) -> None:
          """Print some value."""
          print("A0")

# Modify A0 docstring

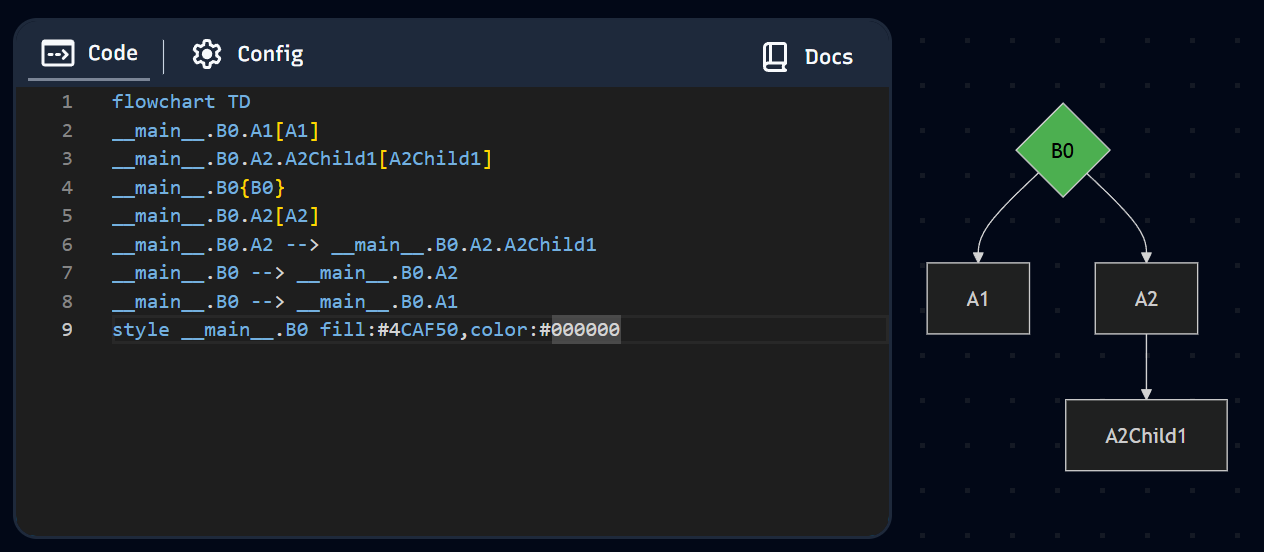

class B0(A0):
    """Modified Main doc."""

    # replace A1
    class A1(Action):
        """Different Doc 1."""

    # extend A2 to add new child agent and replace docstring
    class A2(A0.A2):
        """Modified Doc 2."""

        class A2Child1(Action):
            """Child Doc 1."""

    # remove A3
    A3: ClassVar = None

    # override print method
    def print(self) -> None:
        """Print some value."""
        print("B0")

# Not recommended but it's supported
# Remove A4 from A0 and this will propagate to every derived classes
A0.remove_child("A4")

Abstractions & Polymorphism

Though not commonly used in python, incorporating this approach significantly improves long-term design quality and maintainability.

from abc import ABC, abstractmethod

from aiofiles import open as aio_open

from pybotchi import Action

class FileUpdateAction(Action, ABC):
    """File Update Abstract Action."""

    @abstractmethod
    async def read_file(self, path: str) -> str:
        """Read file by path."""
        pass

class FileUpdate(FileUpdateAction):
    """File Update Abstract Action."""

    async def read_file(self, path: str) -> str:
        """Read file by path."""
        with open(path, 'r') as f:
            return f.read()


class AsyncFileUpdate(FileUpdateAction):
    """File Update Abstract Action."""

    async def read_file(self, path: str) -> str:
        """Read file by path."""
        async with aio_open(path, 'r') as f:
            return await f.read()

Encapsulation

from pybotchi import Action

from pydantic import Field, PrivateAttr

class Agent(Action):
    """Agent."""
    value: str = Field(description="some value")
    _private_value: str = PrivateAttr(default="some value")

Life Cycle Hooks

The purpose of Life Cycle Hooks is to give developers fine-grained control over the various stages of an agent's or workflow's execution. They act as specific, reliable points where you can inject custom business logic, handle data, manage errors, and control the flow, ensuring the agent behaves exactly as intended from preparation to completion.
This control allows for more complex, robust, and customized agent architectures.

pre

Executes before child agents run, allowing preparation, validation, and data gathering.

• Guardrails and validation before execution
• Data gathering (RAG, knowledge graphs, etc.)
• Business logic, tool execution, or preprocessing
• Logging and notifications

from itertools import islice

from pybotchi import Action, ActionReturn, Context

from pydantic import Field

class Translate(Action):
    """Translate query to requested language."""

    language: str = Field(description="Target language.")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        # use base llm instance to invoke completion base on your requirements
        message = await context.llm.ainvoke(
            # Override system prompt to make your agent more specialized
            [
                {
                    "content": f"You are a specialized agent for translating the user's query to {self.language}",
                    "role": "system",
                },
                *islice(context.prompts, 1, None),
            ]
        )
        # push message.text to your conversational prompt context
        await context.add_response(self, message.text)

        # All process here are optional and overridable
        # You may do something else here like calling other framework/library
        # You may call langgraph ainvoke
        # You may call crewai kickoff_async
        # You may call OpenAI REST API directly
        # You may do guardrails before executing any commands
        # No restriction at all

        return ActionReturn.GO

        # You can return ActionReturn.END if there's another agent or child to be executed and you already want to stop the workflow
        # You can return ActionReturn.BREAK if it's part of iteration agent and you only need to break the loop and continue on next execution

post

Executes after child agents complete, handling result consolidation and cleanup.

• Consolidate results from child agent executions
• Data persistence (RAG, knowledge graphs, etc.)
• Cleanup and recording processes
• Logging and notifications

from pybotchi import Action, ActionReturn, Context

class GeneratePresentation(Action):
    """Generate presentation based on user's query."""

    # your attributes ...
    # your pre execution method ...
    # your child actions ...

    async def post(self, context: Context) -> ActionReturn:
        """Execute post process."""
        # use base llm instance to invoke completion base on your requirements
        message = await context.llm.ainvoke(
            # Override system prompt to make your agent more specialized
            [
                {
                    "content": f"You are a specialized agent for for generating closing remarks.",
                    "role": "system",
                },
                *islice(context.prompts, 1, None),
            ]
        )
        # push message.text to your conversational prompt context
        await context.add_response(self, message.text)

        # All process here are optional and overridable
        # You may do something else here like calling other framework/library
        # You may call langgraph ainvoke
        # You may call crewai kickoff_async
        # You may call OpenAI REST API directly
        # You may do guardrails after executing all
        # Save data to db
        # Do cleanups
        # No restriction at all

        return ActionReturn.GO

        # You can return ActionReturn.END if there's another agent or child to be executed and you already want to stop the workflow
        # You can return ActionReturn.BREAK if it's part of iteration agent and you only need to break the loop and continue on next execution

on_error

Handles errors during execution with retry logic or custom error handling.

• Error handling and retry mechanisms
• Logging and notifications
• Re-raise errors for parent agent handling

from pybotchi import Action, ActionReturn, Context

class GeneratePresentation(Action):
    """Generate presentation based on user's query."""

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def on_error(self, context: Context, exception: Exception) -> ActionReturn:
        """Execute on error process."""
        # Consume exception Here
        # Check for type or attributes then execute their respective full back process

        # Example:
        match exception:
            case ConnectionError():
                print("Network connection failed")
                fallback1()
            case TimeoutError():
                print("Request timed out")
                fallback2()
            case _:
                print(f"Unexpected error: {type(e).__name__}: {e}")
                fallback3()

        # Optional re-raise
        raise e

fallback

Executes when no child agent is selected, handling non-tool-call results.

• Process text content results from tool calls
• Allow non-tool-call result handling
• Logging and notifications

from pybotchi import Action, ActionReturn, ChatRole, Context

class GeneratePresentation(Action):
    """Generate presentation based on user's query."""

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def fallback(self, context: Context, content: str) -> ActionReturn:
        """Execute fallback process."""
        # You can just add the content as response
        await context.add_response(self, content)

        # or
        # await context.add_message(ChatRole.ASSISTANT, content)

        return ActionReturn.GO

        # or
        # return ActionReturn.END

child_selection

Determines which child agents to execute, can be overridden with custom logic.

• Override with traditional control flow (if/else, switch/case)
• Custom agent selection logic
• Return declared or undeclared child agents

from pybotchi import Action, ActionReturn, ChatRole, Context

class GeneratePresentation(Action):
    """Generate presentation based on user's query."""

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def child_selection(
        self,
        context: Context,
        child_actions: ChildActions | None = None,
    ) -> tuple[list["Action"], str]:
        """Execute tool selection process."""
        # By default, child_actions will hold the current set of child actions.
        # It's only possibly None if the method was called by an overridden process that doesn't maintain the child_actions reference.
        # If it is None, the lines below will automatically retrieve the actions.
        if child_actions is None:
            child_actions = await self.get_child_actions(context)

        # Override the selection here.
        # Use if/else, match/case, or an LLM tool call.
        # context.prompts holds the conversational data.
        # context.metadata holds additional context.
        # context.llm is the default BaseChatModel for your tool call invocation.

        message = await context.llm.ainvoke(...)

        # Select the next actions based on your result.
        next_actions = [
            child_actions[call["name"]](**call["args"]) for call in message.tool_calls
        ]

        # message.text is for a fallback process in case tool_calls is empty.
        return next_actions, message.text

        # Alternatively:
        # return [SomeAction()], "Your fallback message"

commit_context

The final lifecycle event that controls context merging with the main execution context.

• Detach and clone current context for isolated execution
• Control which data merges with main context
• Useful for reactive agents that only need final results

from pybotchi import Action, ActionReturn, ChatRole, Context

class GeneratePresentation(Action):
    """Generate presentation based on user's query."""

    # optional attribute to enable iteration
    __max_child_iteration__ = 5

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def commit_context(self, parent: Context, child: Context) -> None:
        """Execute commit context if it's detached."""
        # The default implementation will merge usages.
        await super().commit_context(parent, child)

        # Include additional data merging or logging here.
        # Transfer context.prompts, metadata, or any other important information.

Extended Life Cycle Hooks

pre_mcp

Executes before MCP server connection for MCPAction agents only.

• Construct MCP server connection arguments
• Refresh expired credentials or tokens
• Guardrails and validation before connection

from pybotchi import ActionReturn
from pybotchi.mcp import MCPAction, MCPConnection, MCPContext


class JiraRequestAction(MCPAction):
    """Trigger Atlassian Jira related request."""

    __mcp_connections__ = [
        MCPConnection("jira", "SSE", "https://mcp.atlassian.com/v1/sse")
    ]

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def pre_mcp(self, context: MCPContext) -> ActionReturn:
        """Execute pre process."""
        if not (integration := context.integrations.get("jira")):
            raise NotImplementedError("Feature not yet implemented!")

        # Implement guardrails or additional validation for custom security checks.

        # Implement business logic to generate a user token or refresh an existing one
        # Use Context overrides here to integrate your specific data requirements

        # Optionally adjust headers for MCP arguments for the duration of this context.
        integration["config"]["headers"] = {"Authorization": "Bearer {{access_token}}"}
        # Optionally override allowed_tools for the duration of this context.
        integration["allowed_tools"] = {
            "Action1",
            "Action2",
        }

        return ActionReturn.GO

pre_grpc

Executes before GRPC server connection for GRPCAction agents only.

• Construct GRPC server connection arguments
• Refresh expired credentials or tokens
• Guardrails and validation before connection

from pybotchi import ActionReturn
from pybotchi.grpc import GRPCAction, GRPCConnection, GRPCContext


class GeneralChat(GRPCAction):
    """Casual Generic Chat."""

    __grpc_connections__ = [GRPCConnection("testing", "localhost:50051", "group-1")]

    # your attributes ...
    # your pre execution method ...
    # your post execution method ...
    # your child actions ...

    async def pre_grpc(self, context: GRPCContext) -> ActionReturn:
        """Execute pre grpc execution."""
        if not (integration := context.integrations.get("testing")):
            raise NotImplementedError("Feature not yet implemented!")

        # Implement guardrails or additional validation for custom security checks.

        # Implement business logic to generate a user token or refresh an existing one
        # Use Context overrides here to integrate your specific data requirements

        # Optionally Adjust GRPC connection arguments and additional configuration for the duration of this context.
        integration["config"]["metadata"] = {
            "additional_field_to_be": "included in invocation_metadata"
        }
        integration["config"]["group"] = "override the group"
        integration["allowed_tools"] = {
            "Action1",
            "Action2",
        }

        return ActionReturn.GO

gRPC (Scaling)

PyBotchi's gRPC support enables true distributed scaling by allowing a PyBotchi client to connect to remote PyBotchi servers over gRPC. This lets you distribute compute resources per Action (or per group of Actions) while maintaining execution as a single unified graph.

Real-Time Context Synchronization

When an Action executes through a gRPC connection, PyBotchi maintains bidirectional context synchronization between client and server throughout the execution lifecycle.

• Server → Client: When the remote server adds responses or updates context, changes propagate back to the client in real-time.
• Client → Server: When the client updates context during an active connection, changes flow to the server immediately.
• No polling required: Context stays synchronized through the persistent gRPC connection—no polling loops, background jobs, or coordination overhead.
• No database dependency: State synchronization happens directly through the connection without requiring external storage for coordination.

Concurrent Execution Support

gRPC Actions fully support concurrent execution just like local Actions. Enable concurrent child execution by setting __concurrent__ to control parallel processing across remote servers.

Via Remote Action Configuration

from pybotchi import Action, ActionReturn, ChatRole
from pybotchi.grpc import GRPCContext

from pydantic import Field

class MathProblem(Action):
    """Solve the math problem."""

    # Action will run concurrently
    __concurrent__ = True
    __groups__ = {"grpc": {"group-1"}}

    equation: str = Field(description="The mathematical equation to solve (e.g., '2x + 5')")

    async def pre(self, context: GRPCContext) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Solve `{self.equation}`")
        await context.add_response(self, message.text)
        return ActionReturn.GO

Via Local Action Override

from pybotchi.grpc import GRPCAction, GRPCConnection, GRPCRemoteAction

class GeneralChat(GRPCAction):
    """Casual Generic Chat."""

    __grpc_connections__ = [GRPCConnection("testing", "localhost:50051", ["group-1"])]

    class MathProblem(GRPCRemoteAction):
        # This overrides the remote action configuration and can be used to switch concurrent remote actions to sequential execution (ex: __concurrent__ = False)
        __concurrent__ = True

This enables true parallel distributed execution—multiple remote Actions can run simultaneously on different servers, with context automatically synchronized back to the client as each completes.

Core Capabilities

When to Use gRPC

• Resource-intensive Actions: RAG pipelines, vector searches, model inference, or long-running computations that benefit from dedicated hardware (GPUs, high-memory instances).
• Resource isolation: Separate CPU/GPU/memory allocation per Action group to prevent resource contention and improve reliability.
• Horizontal scaling: Deploy multiple servers hosting specialized Action groups, with automatic load distribution across instances.
• Team independence: Different teams deploy and scale their Actions independently without coordinating deployments or risking graph breakage.
• Cost optimization: Run expensive operations on spot instances or specialized hardware only when needed, while keeping coordination logic on cheaper infrastructure.
• Fault isolation: Contain failures to specific Action groups—a crashed remote Action doesn't take down your entire system.

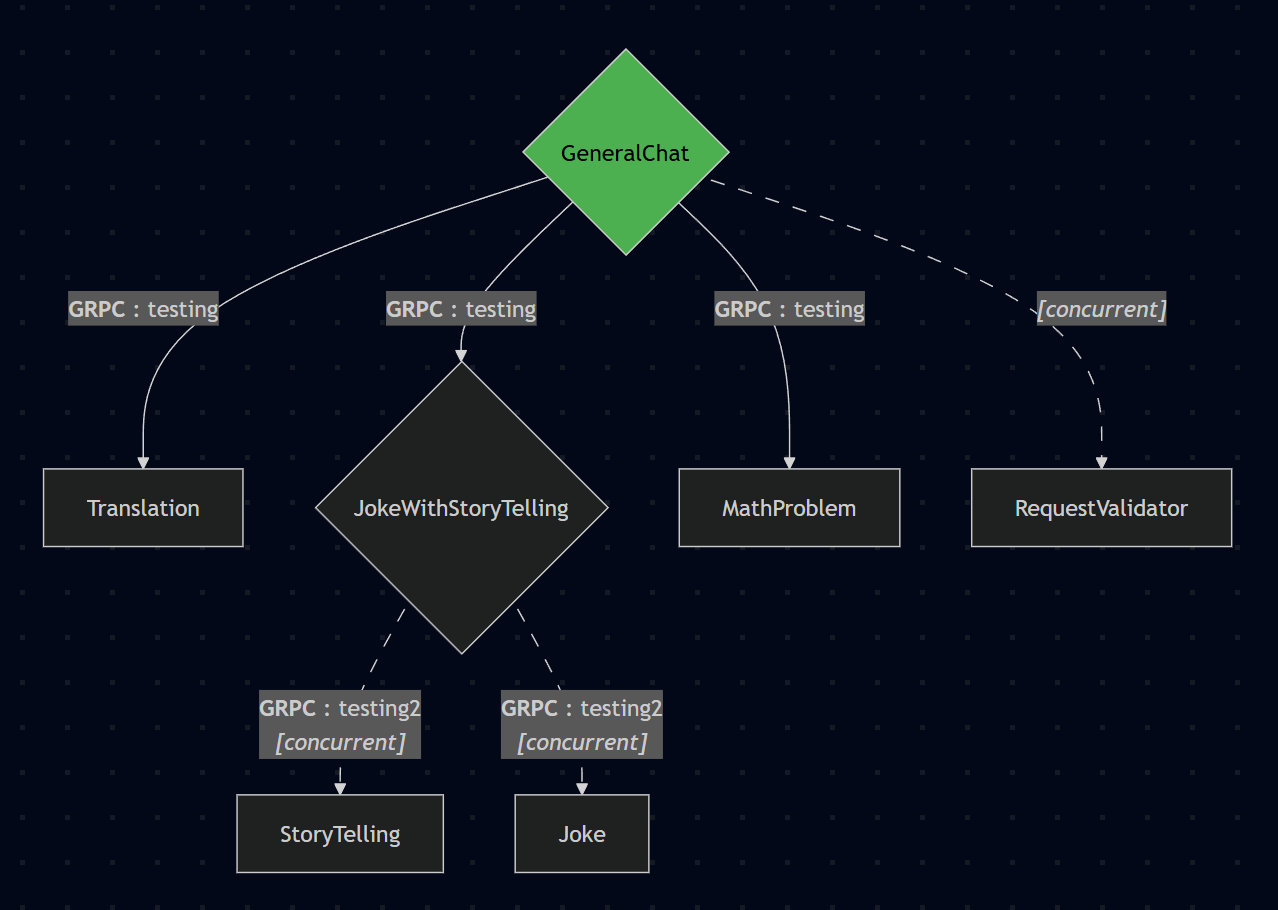

Complete Example

This example demonstrates a distributed setup with nested gRPC connections, concurrent execution, and bidirectional context synchronization.

from os import getenv

from dotenv import load_dotenv

from langchain_openai import AzureChatOpenAI

from pybotchi import Action, ActionReturn, ChatRole, LLM
from pybotchi.grpc import GRPCAction, GRPCConnection, GRPCContext

from pydantic import Field

load_dotenv()

LLM.add(
    base=AzureChatOpenAI(
        api_key=getenv("CHAT_KEY"),  # type: ignore[arg-type]
        azure_endpoint=getenv("CHAT_ENDPOINT"),
        azure_deployment=getenv("CHAT_DEPLOYMENT"),
        model=getenv("CHAT_MODEL"),
        api_version=getenv("CHAT_VERSION"),
        temperature=int(getenv("CHAT_TEMPERATURE", "1")),
        stream_usage=True,
    )
)


class MathProblem(Action):
    """Solve the math problem."""

    __groups__ = {"grpc": {"group-1"}}

    equation: str = Field(description="The mathematical equation to solve (e.g., '2x + 5')")

    async def pre(self, context: GRPCContext) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Solve `{self.equation}`")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_message(
            ChatRole.ASSISTANT,
            "Adding additional message",
            metadata={"additional": True},
        )
        await context.add_response(self, message.text)
        return ActionReturn.GO


class Translation(Action):
    """Translate to specific language."""

    __groups__ = {"grpc": {"group-1"}}

    message: str = Field(description="The text content to be translated.")
    language: str = Field(description="The ISO code or name of the target language.")

    async def pre(self, context: GRPCContext) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Translate `{self.message}` to {self.language}")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_message(
            ChatRole.ASSISTANT,
            "Adding additional message",
            metadata={"additional": True},
        )
        await context.add_response(self, message.text)
        return ActionReturn.GO


# Example nested gRPC Action - exposed at group-1 and connected to group-2
class JokeWithStoryTelling(GRPCAction):
    """Tell Joke or Story."""

    __groups__ = {"grpc": {"group-1"}}
    __grpc_connections__ = [GRPCConnection("testing2", "localhost:50051", ["group-2"])]

    async def post(self, context: GRPCContext) -> ActionReturn:
        """Execute post process."""
        print("Executing post...")
        message = await context.llm.ainvoke(context.prompts)
        await context.add_usage(self, context.llm.model_name, message.usage_metadata, "combine")
        await context.add_message(ChatRole.ASSISTANT, message.text)
        print("Done executing post...")
        return ActionReturn.END


class Joke(Action):
    """Generate a joke."""

    __concurrent__ = True
    __groups__ = {"grpc": {"group-2"}}

    async def pre(self, context: GRPCContext) -> ActionReturn:
        """Execute pre process."""
        print("Executing Joke...")
        message = await context.llm.ainvoke("generate very short joke")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        print("Done executing Joke...")
        return ActionReturn.GO


class StoryTelling(Action):
    """Tell a story."""

    __concurrent__ = True
    __groups__ = {"grpc": {"group-2"}}

    async def pre(self, context: GRPCContext) -> ActionReturn:
        """Execute pre process."""
        print("Executing StoryTelling...")
        message = await context.llm.ainvoke("generate a very short story")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        print("Done executing StoryTelling...")
        return ActionReturn.GO

from asyncio import run
from os import getenv
from json import dumps

from dotenv import load_dotenv

from langchain_openai import AzureChatOpenAI

from pybotchi import Action, ActionReturn, ChatRole, LLM
from pybotchi.grpc import (
    GRPCAction,
    GRPCConnection,
    GRPCContext,
    GRPCIntegration,
    GRPCRemoteAction,
    graph,
)

load_dotenv()

LLM.add(
    base=AzureChatOpenAI(
        api_key=getenv("CHAT_KEY"),  # type: ignore[arg-type]
        azure_endpoint=getenv("CHAT_ENDPOINT"),
        azure_deployment=getenv("CHAT_DEPLOYMENT"),
        model=getenv("CHAT_MODEL"),
        api_version=getenv("CHAT_VERSION"),
        temperature=int(getenv("CHAT_TEMPERATURE", "1")),
        stream_usage=True,
    )
)


class GeneralChat(GRPCAction):
    """Casual Generic Chat."""

    __grpc_connections__ = [GRPCConnection("testing", "localhost:50051", ["group-1"])]

    async def pre_grpc(self, context: GRPCContext) -> ActionReturn:
        """Execute pre grpc execution."""
        print("Trigger anything here before grpc client connection")
        print("Build context.integrations['testing']['config']")
        print("Refresh tokens")
        print("etc ...")
        return ActionReturn.GO

    class MathProblem(GRPCRemoteAction):
        async def pre(self, context: GRPCContext) -> ActionReturn:
            """Execute pre execution."""
            print("#####################################")
            return await super().pre(context)

    class RequestValidator(Action):
        """Validate request concurrently."""

        __concurrent__ = True

        async def pre(self, context: GRPCContext) -> ActionReturn:
            """Execute pre execution."""
            await context.add_response(self, "Validated!")
            return ActionReturn.GO


async def test() -> None:
    """Chat."""
    integrations: dict[str, GRPCIntegration] = {"testing": {}, "testing2": {}}
    context = GRPCContext(
        prompts=[
            {
                "role": ChatRole.SYSTEM,
                "content": "Address user's query while always including `RequestValidator` as first tool if available",
            },
            {
                "role": ChatRole.USER,
                "content": "What is 4 x 4 and what is the english of `Kamusta?`",
                # "content": "Tell me a joke and incorporate it on a very short story",
            },
        ],
        integrations=integrations,
    )
    action, result = await context.start(GeneralChat)
    print(dumps(context.prompts, indent=4))
    print(dumps(action.serialize(), indent=4))

    general_chat_graph = await graph(GeneralChat, integrations=integrations)
    print(general_chat_graph.flowchart())


run(test())

Running the Example

Start the gRPC Server

pybotchi-grpc server.py

#-------------------------------------------------------#
# Agent ID: agent_02b012c96bcc48149bcea9a6488e6b3d
# Agent Path: server.py
# Agent Path: server.py
# Starting None worker(s) on 0.0.0.0:50051
#-------------------------------------------------------#
# Agent Path: server.py
# Agent Handler: PyBotchiGRPC
# gRPC server running on 0.0.0.0:50051
#-------------------------------------------------------#

Run the Client

python3 client.py

Trigger anything here before grpc client connection
Build context.integrations['testing']['config']
Refresh tokens
etc ...
#####################################

[
    {
        "role": "system",
        "content": "Address user's query while always including `RequestValidator` as first tool if available"
    },
    {
        "role": "user",
        "content": "What is 4 x 4 and what is the english of `Kamusta?`"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_064c224da6ac46fe89be466e62df45f7",
                "function": {
                    "name": "RequestValidator",
                    "arguments": "{}"
                },
                "type": "function"
            }
        ]
    },
    {
        "content": "Validated!",
        "role": "tool",
        "tool_call_id": "call_064c224da6ac46fe89be466e62df45f7"
    },
    {
        "content": "Adding additional message",
        "role": "assistant"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_893c16c0c1844420b98a95dce9ef8813",
                "type": "function",
                "function": {
                    "name": "MathProblem",
                    "arguments": "{\"equation\":\"4 x 4\"}"
                }
            }
        ]
    },
    {
        "content": "`4 x 4 = 16`",
        "role": "tool",
        "tool_call_id": "call_893c16c0c1844420b98a95dce9ef8813"
    },
    {
        "content": "Adding additional message",
        "role": "assistant"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_8482dbd4938945bca2ac9d9e9633b506",
                "type": "function",
                "function": {
                    "name": "Translation",
                    "arguments": "{\"message\":\"Kamusta?\",\"language\":\"English\"}"
                }
            }
        ]
    },
    {
        "content": "\"Kamusta?\" translates to \"How are you?\" in English.",
        "role": "tool",
        "tool_call_id": "call_8482dbd4938945bca2ac9d9e9633b506"
    }
]

{
    "name": "GeneralChat",
    "args": {},
    "usages": [
        {
            "name": "$tool",
            "model": "gpt-4.1",
            "usage": {
                "input_tokens": 324,
                "output_tokens": 66,
                "total_tokens": 390,
                "input_token_details": {
                    "audio": 0,
                    "cache_read": 0
                },
                "output_token_details": {
                    "audio": 0,
                    "reasoning": 0
                }
            }
        }
    ],
    "actions": [
        {
            "name": "MathProblem",
            "args": {
                "equation": "4 x 4"
            },
            "usages": [
                {
                    "model": "gpt-4.1",
                    "usage": {
                        "input_token_details": {
                            "audio": 0.0,
                            "cache_read": 0.0
                        },
                        "output_token_details": {
                            "reasoning": 0.0,
                            "audio": 0.0
                        },
                        "total_tokens": 24.0,
                        "input_tokens": 14.0,
                        "output_tokens": 10.0
                    },
                    "name": null
                }
            ],
            "actions": []
        },
        {
            "name": "RequestValidator",
            "args": {},
            "usages": [],
            "actions": []
        },
        {
            "name": "Translation",
            "args": {
                "language": "English",
                "message": "Kamusta?"
            },
            "usages": [
                {
                    "model": "gpt-4.1",
                    "usage": {
                        "input_token_details": {
                            "audio": 0.0,
                            "cache_read": 0.0
                        },
                        "output_token_details": {
                            "reasoning": 0.0,
                            "audio": 0.0
                        },
                        "total_tokens": 30.0,
                        "input_tokens": 15.0,
                        "output_tokens": 15.0
                    },
                    "name": null
                }
            ],
            "actions": []
        }
    ]
}

flowchart TD
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.Translation[Translation]
__main__.GeneralChat{GeneralChat}
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.Joke[Joke]
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.JokeWithStoryTelling{JokeWithStoryTelling}
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.patched.MathProblem[MathProblem]
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.StoryTelling[StoryTelling]
__main__.GeneralChat.RequestValidator[RequestValidator]
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.JokeWithStoryTelling ed0@--**GRPC** : testing2
*[concurrent]*--> grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.StoryTelling
__main__.GeneralChat --**GRPC** : testing--> grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.patched.MathProblem
__main__.GeneralChat --**GRPC** : testing--> grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.JokeWithStoryTelling
__main__.GeneralChat --**GRPC** : testing--> grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.Translation
__main__.GeneralChat ed1@--*[concurrent]*--> __main__.GeneralChat.RequestValidator
grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.JokeWithStoryTelling ed2@--**GRPC** : testing2
*[concurrent]*--> grpc.agent_02b012c96bcc48149bcea9a6488e6b3d.Joke
style __main__.GeneralChat fill:#4CAF50,color:#000000
classDef animate stroke-dasharray: 10,stroke-dashoffset: 500,animation: dash 10s linear infinite;
class ed0,ed1,ed2 animate

Execution Graph Visualization

MCP (Model Context Protocol)

PyBotchi's MCP support enables seamless integration with the Model Context Protocol, allowing your Actions to function as MCP servers that can be consumed by any MCP-compatible client. This lets you expose your agent capabilities as standardized tools while maintaining PyBotchi's powerful orchestration features.

Dual-Mode Architecture

PyBotchi supports MCP in two complementary ways:

• MCP Server Mode: Expose your Actions as MCP tools that can be discovered and invoked by external MCP clients (Claude Desktop, IDEs, etc.)
• MCP Client Mode: Connect to external MCP servers and integrate their tools as child Actions within your PyBotchi orchestration graph

Transport Protocols

PyBotchi MCP servers support multiple transport mechanisms:

• Server-Sent Events (SSE): Real-time streaming protocol ideal for long-running operations and progressive updates
• Streamable HTTP (SHTTP): HTTP-based protocol for simpler integration with existing web infrastructure

Core Capabilities

When to Use MCP

• External tool exposure: Make your PyBotchi agents available to Claude Desktop, IDEs, or other MCP-compatible applications.
• Third-party integration: Consume tools from external MCP servers (Brave Search, file systems, databases) within your PyBotchi orchestration.
• Ecosystem participation: Contribute your specialized agents to the growing MCP ecosystem while maintaining PyBotchi's advanced features.
• Standardized APIs: Provide a standard interface to your agents without sacrificing PyBotchi's orchestration capabilities.
• Hybrid architectures: Combine PyBotchi's orchestration with MCP's broad ecosystem support for maximum flexibility.

Complete Example

This example demonstrates both MCP server and client modes, showing how to expose Actions as MCP tools and consume them from a PyBotchi client.

from os import getenv

from dotenv import load_dotenv

from langchain_openai import AzureChatOpenAI

from pydantic import Field
from uvicorn import run

from pybotchi import Action, ActionReturn, ChatRole, Context, LLM
from pybotchi.mcp import build_mcp_app

load_dotenv()

LLM.add(
    base=AzureChatOpenAI(
        api_key=getenv("CHAT_KEY"),  # type: ignore[arg-type]
        azure_endpoint=getenv("CHAT_ENDPOINT"),
        azure_deployment=getenv("CHAT_DEPLOYMENT"),
        model=getenv("CHAT_MODEL"),
        api_version=getenv("CHAT_VERSION"),
        temperature=int(getenv("CHAT_TEMPERATURE", "1")),
        stream_usage=True,
    )
)


class MathProblem(Action):
    """Solve the math problem."""

    __groups__ = {"mcp": {"group-1"}}

    equation: str = Field(description="The mathematical equation to solve (e.g., '2x + 5')")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Solve `{self.equation}`")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        return ActionReturn.GO


class Translation(Action):
    """Translate to specific language."""

    __groups__ = {"mcp": {"group-1"}}

    message: str = Field(description="The text content to be translated.")
    language: str = Field(description="The ISO code or name of the target language.")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Translate `{self.message}` to {self.language}")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        return ActionReturn.GO


class JokeWithStoryTelling(Action):
    """Tell Joke or Story."""

    __groups__ = {"mcp": {"group-1", "group-2"}}

    query: str

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        await context.add_message(ChatRole.USER, self.query)
        return ActionReturn.GO

    class Joke(Action):
        """Generate a joke."""

        __concurrent__ = True

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            print("Executing Joke...")
            message = await context.llm.ainvoke("generate very short joke")
            await context.add_usage(self, context.llm.model_name, message.usage_metadata)
            await context.add_response(self, message.text)
            print("Done executing Joke...")
            return ActionReturn.GO

    class StoryTelling(Action):
        """Tell a story."""

        __concurrent__ = True

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            print("Executing StoryTelling...")
            message = await context.llm.ainvoke("generate a very short story")
            await context.add_usage(self, context.llm.model_name, message.usage_metadata)
            await context.add_response(self, message.text)
            print("Done executing StoryTelling...")
            return ActionReturn.GO

    async def post(self, context: Context) -> ActionReturn:
        """Execute post process."""
        print("Executing post...")
        message = await context.llm.ainvoke(context.prompts)
        await context.add_usage(self, context.llm.model_name, message.usage_metadata, "combine")
        await context.add_message(ChatRole.ASSISTANT, message.text)
        print("Done executing post...")
        return ActionReturn.END


##################################################################################
#                                   Direct MCP                                   #
#                      SSE paths /group-1/sse & /group-2/sse                     #
#                Streamable HTTP paths /group-1/mcp & /group-2/mcp               #
##################################################################################

app = build_mcp_app(transport="streamable-http")

if __name__ == "__main__":
    run(
        app,
        host="127.0.0.1",
        port=8000,
        log_level="info",
    )

from collections.abc import AsyncGenerator
from contextlib import asynccontextmanager
from os import getenv

from dotenv import load_dotenv

from fastapi import FastAPI

from langchain_openai import AzureChatOpenAI

from pydantic import Field
from uvicorn import run

from pybotchi import Action, ActionReturn, ChatRole, Context, LLM
from pybotchi.mcp import mount_mcp_app

load_dotenv()

LLM.add(
    base=AzureChatOpenAI(
        api_key=getenv("CHAT_KEY"),  # type: ignore[arg-type]
        azure_endpoint=getenv("CHAT_ENDPOINT"),
        azure_deployment=getenv("CHAT_DEPLOYMENT"),
        model=getenv("CHAT_MODEL"),
        api_version=getenv("CHAT_VERSION"),
        temperature=int(getenv("CHAT_TEMPERATURE", "1")),
        stream_usage=True,
    )
)


class MathProblem(Action):
    """Solve the math problem."""

    __groups__ = {"mcp": {"group-1"}}

    equation: str = Field(description="The mathematical equation to solve (e.g., '2x + 5')")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Solve `{self.equation}`")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        return ActionReturn.GO


class Translation(Action):
    """Translate to specific language."""

    __groups__ = {"mcp": {"group-1"}}

    message: str = Field(description="The text content to be translated.")
    language: str = Field(description="The ISO code or name of the target language.")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        message = await context.llm.ainvoke(f"Translate `{self.message}` to {self.language}")
        await context.add_usage(self, context.llm.model_name, message.usage_metadata)
        await context.add_response(self, message.text)
        return ActionReturn.GO


class JokeWithStoryTelling(Action):
    """Tell Joke or Story."""

    __groups__ = {"mcp": {"group-1", "group-2"}}

    query: str

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre process."""
        await context.add_message(ChatRole.USER, self.query)
        return ActionReturn.GO

    class Joke(Action):
        """Generate a joke."""

        __concurrent__ = True

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            print("Executing Joke...")
            message = await context.llm.ainvoke("generate very short joke")
            await context.add_usage(self, context.llm.model_name, message.usage_metadata)
            await context.add_response(self, message.text)
            print("Done executing Joke...")
            return ActionReturn.GO

    class StoryTelling(Action):
        """Tell a story."""

        __concurrent__ = True

        async def pre(self, context: Context) -> ActionReturn:
            """Execute pre process."""
            print("Executing StoryTelling...")
            message = await context.llm.ainvoke("generate a very short story")
            await context.add_usage(self, context.llm.model_name, message.usage_metadata)
            await context.add_response(self, message.text)
            print("Done executing StoryTelling...")
            return ActionReturn.GO

    async def post(self, context: Context) -> ActionReturn:
        """Execute post process."""
        print("Executing post...")
        message = await context.llm.ainvoke(context.prompts)
        await context.add_usage(self, context.llm.model_name, message.usage_metadata, "combine")
        await context.add_message(ChatRole.ASSISTANT, message.text)
        print("Done executing post...")
        return ActionReturn.END


@asynccontextmanager
async def lifespan(app: FastAPI) -> AsyncGenerator[None, None]:
    """Override life cycle."""
    async with mount_mcp_app(app, transport="streamable-http"):
        yield


app = FastAPI(lifespan=lifespan)
if __name__ == "__main__":
    run(
        app,
        host="127.0.0.1",
        port=8000,
        log_level="info",
    )

from asyncio import run
from json import dumps
from os import getenv

from dotenv import load_dotenv

from langchain_openai import AzureChatOpenAI

from pybotchi import ActionReturn, ChatRole, LLM
from pybotchi.mcp import MCPAction, MCPConnection, MCPContext, MCPIntegration, graph

load_dotenv()

LLM.add(
    base=AzureChatOpenAI(
        api_key=getenv("CHAT_KEY"),  # type: ignore[arg-type]
        azure_endpoint=getenv("CHAT_ENDPOINT"),
        azure_deployment=getenv("CHAT_DEPLOYMENT"),
        model=getenv("CHAT_MODEL"),
        api_version=getenv("CHAT_VERSION"),
        temperature=int(getenv("CHAT_TEMPERATURE", "1")),
        stream_usage=True,
    )
)


class GeneralChat(MCPAction):
    """Casual Generic Chat."""

    __mcp_connections__ = [MCPConnection("testing", "SHTTP", "http://localhost:8000/group-1/mcp")]

    async def pre_mcp(self, context: MCPContext) -> ActionReturn:
        """Execute pre mcp execution."""
        print("Trigger anything here before mcp client connection")
        print("Build context.integrations['testing']['config']")
        print("Refresh tokens")
        print("etc ...")
        return ActionReturn.GO


async def test() -> None:
    """Chat."""
    integrations: dict[str, MCPIntegration] = {"testing": {}}
    context = MCPContext(
        prompts=[
            {
                "role": ChatRole.SYSTEM,
                "content": "",
            },
            {
                "role": ChatRole.USER,
                "content": "What is 4 x 4 and what is the english of `Kamusta?`",
            },
        ],
        integrations=integrations,
    )
    action, result = await context.start(GeneralChat)
    print(dumps(context.prompts, indent=4))
    print(dumps(action.serialize(), indent=4))

    general_chat_graph = await graph(GeneralChat, {"IgnoredAction": False}, integrations)
    print(general_chat_graph.flowchart())


run(test())

Running the Example

Start the MCP Server

python3 server.py

INFO:     Started server process [642763]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

Run the Client

python3 client.py

Trigger anything here before mcp client connection
Build context.integrations['testing']['config']
Refresh tokens
etc ...

[
    {
        "role": "system",
        "content": ""
    },
    {
        "role": "user",
        "content": "What is 4 x 4 and what is the english of `Kamusta?`"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_3d3962b3683e4934abea6590f17ddd54",
                "function": {
                    "name": "Mathproblem",
                    "arguments": "{\"equation\":\"4 x 4\"}"
                },
                "type": "function"
            }
        ]
    },
    {
        "content": "`4 x 4 = 16`",
        "role": "tool",
        "tool_call_id": "call_3d3962b3683e4934abea6590f17ddd54"
    },
    {
        "content": "",
        "role": "assistant",
        "tool_calls": [
            {
                "id": "call_6ad08ce39f3e4eca940e2715f845633b",
                "function": {
                    "name": "Translation",
                    "arguments": "{\"message\":\"Kamusta?\",\"language\":\"English\"}"
                },
                "type": "function"
            }
        ]
    },
    {
        "content": "\"Kamusta?\" translates to \"**How are you?**\" in English.",
        "role": "tool",
        "tool_call_id": "call_6ad08ce39f3e4eca940e2715f845633b"
    }
]

{
    "name": "GeneralChat",
    "args": {},
    "usages": [
        {
            "name": "$tool",
            "model": "gpt-4.1",
            "usage": {
                "input_tokens": 274,
                "output_tokens": 55,
                "total_tokens": 329,
                "input_token_details": {
                    "audio": 0,
                    "cache_read": 0
                },
                "output_token_details": {
                    "audio": 0,
                    "reasoning": 0
                }
            }
        }
    ],
    "actions": [
        {
            "name": "Mathproblem",
            "args": {
                "equation": "4 x 4"
            },
            "usages": [],
            "actions": []
        },
        {
            "name": "Translation",
            "args": {
                "message": "Kamusta?",
                "language": "English"
            },
            "usages": [],
            "actions": []
        }
    ]
}

flowchart TD
__main__.GeneralChat{GeneralChat}
mcp.testing.Jokewithstorytelling[Jokewithstorytelling]
mcp.testing.Translation[Translation]
mcp.testing.Mathproblem[Mathproblem]
__main__.GeneralChat --**MCP** : testing--> mcp.testing.Mathproblem
__main__.GeneralChat --**MCP** : testing--> mcp.testing.Jokewithstorytelling
__main__.GeneralChat --**MCP** : testing--> mcp.testing.Translation
style __main__.GeneralChat fill:#4CAF50,color:#000000

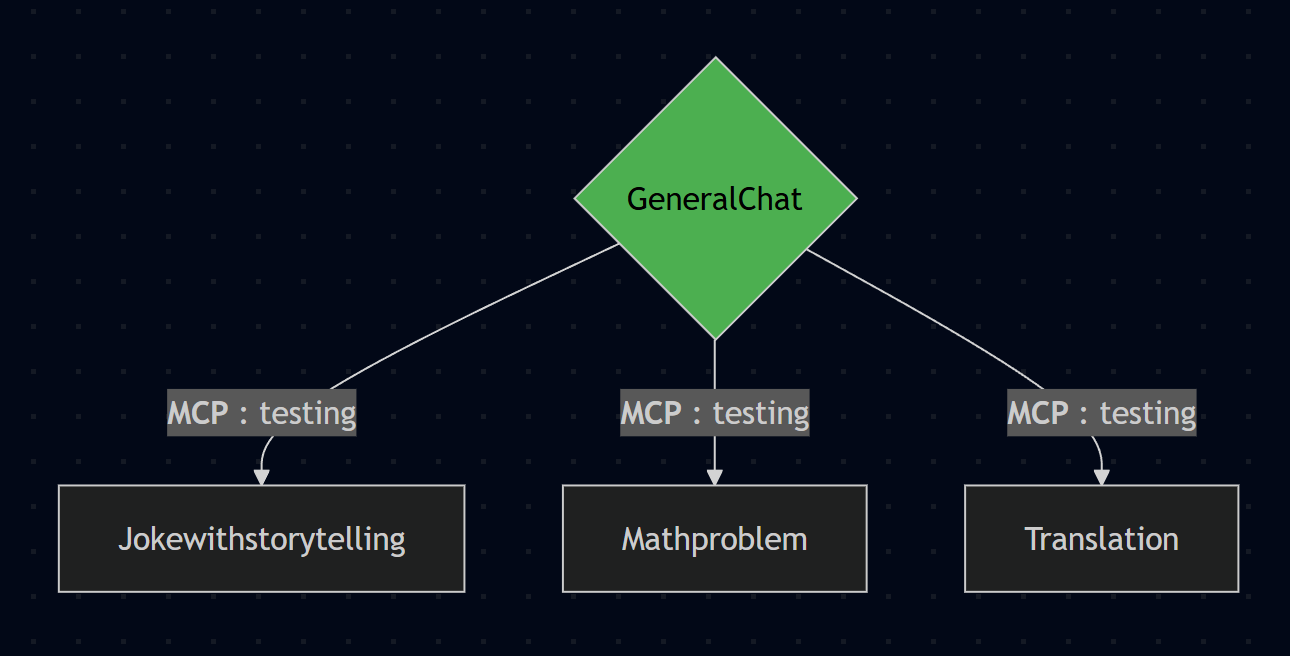

Execution Graph Visualization

MCP Endpoints Structure

PyBotchi automatically generates MCP endpoints based on your Action groups:

• /<group-name>/mcp - Streamable HTTP endpoint for the group
• /<group-name>/sse - Server-Sent Events endpoint for the group

Each endpoint exposes only the Actions assigned to that group via __groups__, enabling fine-grained access control and logical organization.

Using MCP with Claude Desktop

Your PyBotchi MCP server can be consumed by Claude Desktop or any other MCP-compatible client. Simply configure the client to connect to your server's MCP endpoint:

{
  "mcpServers": {
    "pybotchi-tools": {
      "command": "npx",
      "args": ["mcp-remote", "http://localhost:8000/group-1/mcp"]
    }
  }
}

Examples

Explore practical examples demonstrating PyBotchi's capabilities, from basic implementations to complex real-world applications. All examples are available in the GitHub repository with complete, runnable code.

Contributing

🚀 Development Setup

git clone https://github.com/YOUR_USERNAME/pybotchi.git
cd pybotchi

pip install poetry
poetry install --all-extras

pre-commit install

git checkout -b feature/your-feature-name

🧪 Code Quality

Pre-commit hooks will automatically run formatting and quality checks when you commit. To manually run checks:

# Run all pre-commit hooks manually
pre-commit run --all-files

# Or run specific tools
ruff check --fix .
ruff format .
mypy pybotchi

📝 Code Style

Example:

"""Example action module demonstrating PyBotchi coding standards."""

from pybotchi import Action, ActionReturn, Context
from pydantic import Field


class ExampleAction(Action):
    """Processes user requests and generates responses."""

    field_name: str = Field(description="Field description")

    async def pre(self, context: Context) -> ActionReturn:
        """Execute pre-processing logic before child actions."""
        return ActionReturn.GO

💬 Commit Messages

Use clear, descriptive commit messages with capitalized type prefixes:

[TYPE]: Description

[optional body]

Examples:

[MINOR]: Add custom metadata support for gRPC connections
[BUGFIX]: Resolve SSE transport disconnection in MCP
[DOCS]: Update installation instructions
[MAJOR]: Refactor Action lifecycle hooks

🔄 Pull Request Process

git fetch origin
git rebase origin/main

🐛 Reporting Bugs

Include in your bug report:

💡 Feature Requests

Include in your proposal:

• Feature description - What are you proposing?
• Use case - What problem does it solve?
• Proposed implementation - If you have ideas

📖 Documentation

Help improve:

🤝 Community Guidelines
